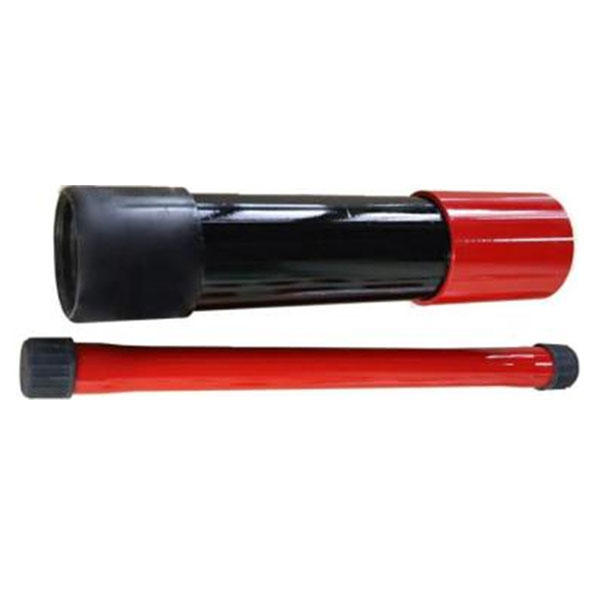

pup joint

Inquiry
Detail

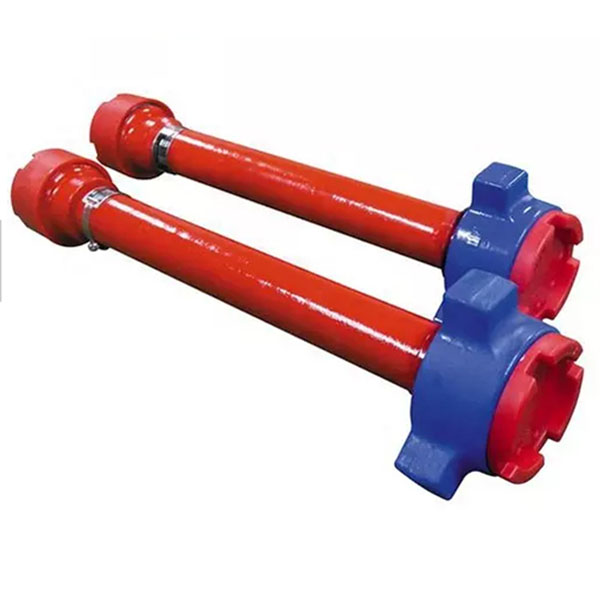

● High pressure straight pipes have four different types: pressure seal, non- pressure seal, integral type and welding type .

● We can provide 1"~4" and 1000psi to 15000psi(7MPa to 105MPa) straight pipes . 1m,1 .5m,2m,2 .5m,2 .8m l ong integral straight pipes are available . We also provide HP straight pipes with other sizes and pressure rat ings as per customers' requirement.

● The model of Pressure Seal Type: FIG402 union ,FIG602 union ,FIG1002 union ,FIG1502 union ;rated:4000p si(28MPa)~15000psi(105MPa).

● The model of Non-pressure Seal Type: FIG206 union, FIG602 union,FIG1002 union,FIG1502 union;rated: 2000psi(14MPa)~150 00psi(105MPa).

● The model of Conventional Integral Type: FIG602 union,FIG1002 union,FIG1502 union;rated: 6000psi(42M Pa)- 15000psi(105MPa).

● The model of Integral Type for H2S environment: FIG602 union,FIG1002 union,FIG1502 union;rated: 5000p si(35MPa)- 10000psi(70MPa).

● The model of Welded Union Type: FIG402 union,Tr union in metric,FIG602 union,FIG1002 union,FIG1502 u nion;rated: 4000psi(28MPa)- 15000psi(105MPa).

● The model of Welded Flange Type ; 21/16″flange,29/16″flange,31/8″flange,41/16″flange,31/16″flange;rate d: 3000psi(21MPa)- 15000psi(105MPa).

Specification

Description

End connection

Rated WP

Size(inch)


1"

1- 1/2“

2"

3"

4"

Pressure Seal Type

FIG402 union

4000psi(28MPa)

y


y

y

y

FIG602 union

6000psi(42MPa)

y


y

y

y

FIG1002 union

10000psi(70MPa)

y

y

y

y

y

FIG1502 union

15000psi(105MPa)

y

y

y

y


Non- pressure Seal Type

FIG206 union

2000osi(14MPa)



y

y

y

FIG602 union

6000psi(42MPa)



y

y

y

FIG1002 union

10000psi(70MPa)


y

y

y

y

FIG1502 union

15000psi(105MPa)


y

y

y


Conventional Integral Type

FIG602 union

6000psi(42MPa)


y

y

y


FIG1002 union

10000psi(70MPa)


y

y

y


FIG1502union

15000psi(105MPa)


y

y

y



FIG602 union

5000psi(35MPa)


y

y

y


Integral Type for H2S

environment

FIG1002 union

7500psi(53MPa)


y

y

y


FIG1502 union

10000psi(70MPa)


y

y

y


Welded Union Type

FIG402 union

4000psi(28MPa)



y

y

y

Tr union in

metric

5000psi(35MPa)



y

y

y

FIG602 union

6000psi(42MPa)



y

y

y

FIG1002 union

10000psi(70MPa)


y

y

y

y

FIG1502 union

15000psi(105MPa)


y

y

y


Welded Flange Type

2- 1/16"flange

3000,5000,10000,15000psi(21,35,70,105MPa)



y



2-9/16"flange

3000,5000,10000,15000psi(21,35,70,105MPa)



y

y


3- 1/8"flange

3000,5000psi (21,35MPa)




y


4- 1/16"flange

3000,5000,10000,15000psi(21,35,70,105MPa)





y

3- 1/16"flange

10000,15000psi(70,105MPa)




y
