It is a device with a high spinning speed that separates parts with various ends. A solid centrifuge, commonly referred to as a decanter centrifuge, dewaters sludge/mud and suspensions of various densities.
Main Features
● The centrifuge's bowl is better functioning and built of high-quality stainless steel.
● The life of the solids discharge port is increased by the use of Tungsten carbide inserts or specific ceramic materials.
● Tungsten carbide tiles for screw protection are easier to repair and have a longer lifespan.
● Big bowl, big volume, lots of gravity available.
● The collection box and the main body are both composed of stainless steel.
● Pressure-proof, PLC-controlled VFD control cabinet.
● The stainless steel and tungsten alloy tile-welded screw propeller.
● Solids Discharge port is shielded by ceramics or a changeable tungsten carbon alloy ring.
● There are three overload safety prevention systems: the gear box overload protection system, the hydraulic coupler overload protection system, and the control panel with over currency protection system.
● There are options for crew pumps and centrifugal feeding pumps to suit various applications.

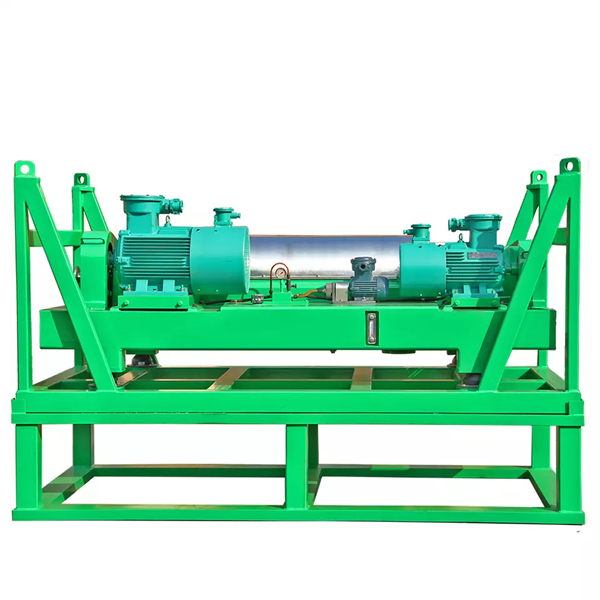

Decanter Centrifuge—9inch(220mm)
Model | KTDDC-91S | KTDDC-92S |
Max Capacity | 130 1/min | 130 1/min |
Effective Capacity | 100 1/min | 100 1/min |
Bowl Diameter | 9inch(220mm) | 9inch(220mm) |
Bowl Length | 20inch(670mm) | 35inch(890mm) |
Max Bowl Speed | 4500RPM | 4500RPM |
Typical Bowl Speed | 3800RPM | 3800/4500RPM |
Max G Force | 2492G | 2492G |
Typical G Force | 1777G | 1777G |
Main Motor | 15HP(11KW) | 15HP(11KW) |
Pump Size | 5.5HP(4KW) | 5.5HP(4KW) |
Gearbox Ratio | 35:01:00 | 35:01:00 |
Gearbox Torch(N.M) | 500N.M | 500N.M |
